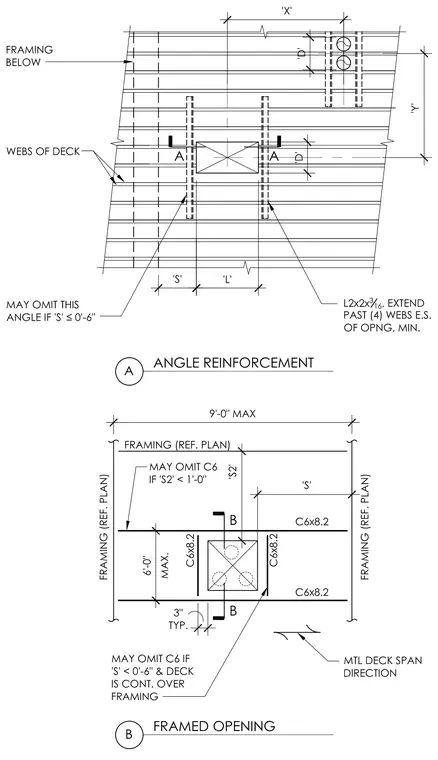

Metal deck floor openings are reinforced using channel headers and structural steel angles spanning across the deck webs. The framing utilizes C6x8.2 channel headers configured to support maximum opening dimensions up to nine feet, with optional omissions permitted based on specific spacing thresholds. Supplemental framing angles sized as L2x2x3/16 extend past four webs on each side of the opening minimum. Dimensioned variables 'X', 'Y', 'S', and 'L' coordinate the exact layout relative to the surrounding framing and deck span direction.
