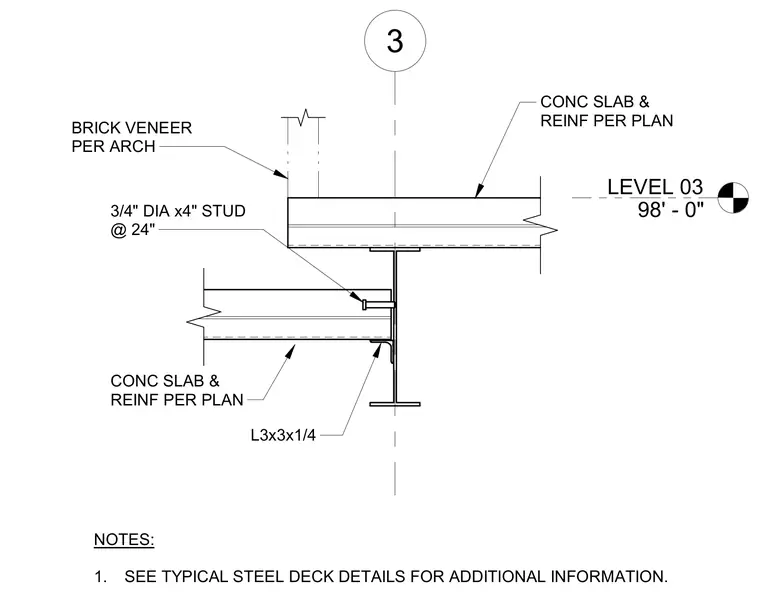

A concrete slab and reinforcement are supported by a structural steel beam at Level 03, elevation 98 feet 0 inches. A 3/4-inch diameter by 4-inch shear stud is welded to the beam flange at 24 inches on center. An L3x3x1/4 angle provides support at the underside of the slab edge. Brick veneer is located at the exterior face per architectural drawings.
LEVEL 03 98' - 0" 3 CONC SLAB & REINF PER PLAN L3x3x1/4 CONC SLAB & REINF PER PLAN 3/4" DIA x4" STUD @ 24" NOTES: 1. SEE TYPICAL STEEL DECK DETAILS FOR ADDITIONAL INFORMATION. BRICK VENEER PER ARCH
