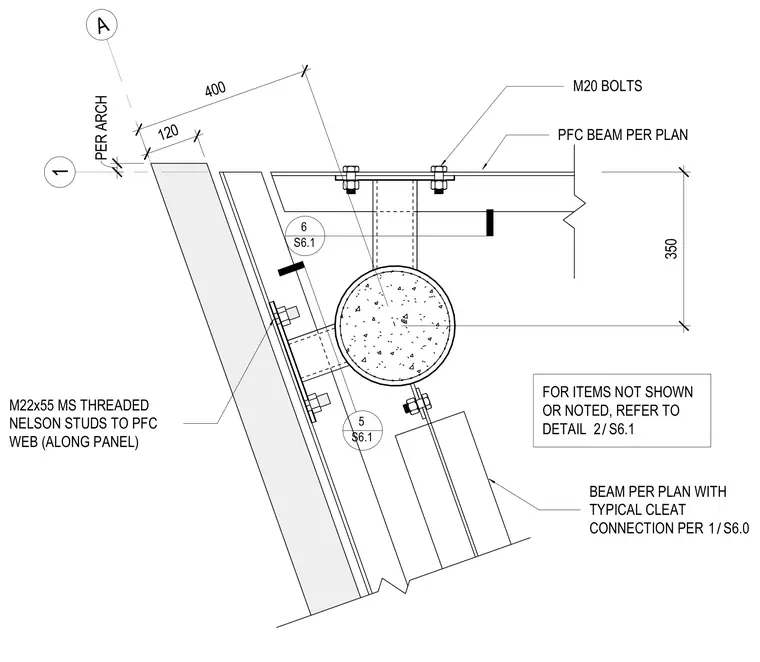

A circular hollow section steel column supports a parallel flange channel beam and precast concrete panels using bolted connections and mild steel threaded studs. The parallel flange channel web receives M22x55 mild steel threaded Nelson studs along the precast panel. M20 bolts secure the parallel flange channel beam per the framing plan. A beam with a typical cleat connection ties into the assembly according to sheet S6.0.
400 350 A 1 PFC BEAM PER PLAN M22x55 MS THREADED NELSON STUDS TO PFC WEB (ALONG PANEL) M20 BOLTS FOR ITEMS NOT SHOWN OR NOTED, REFER TO DETAIL 6 S6.1 5 S6.1 PER ARCH / 2 S6.1 BEAM PER PLAN WITH TYPICAL CLEAT CONNECTION PER / 1 S6.0 120
