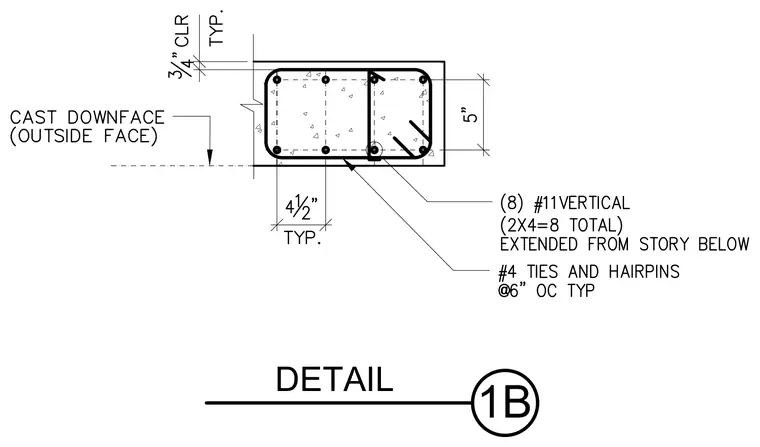

This structural detail shows a reinforced concrete wall section with eight number eleven vertical bars extended from the story below, arranged in a two-by-four configuration. Number four ties and hairpins are spaced at six inches on center typically. The reinforcement is enclosed by concrete maintaining a typical three-quarter inch clear cover. A five-inch dimension marks the vertical distribution, with four and one-half inch typical horizontal spacing. The cast downface indicates the outside face of the assembly.
