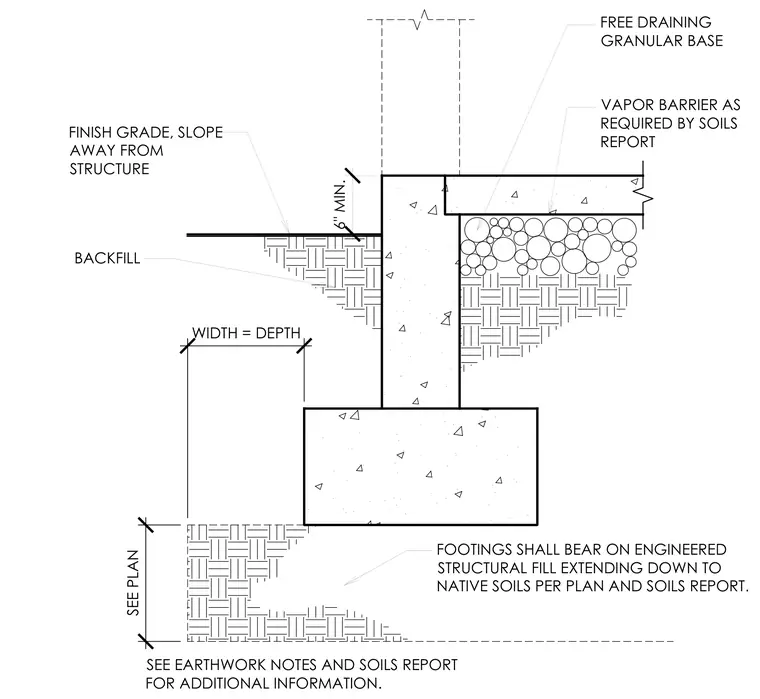

A cast-in-place concrete wall and continuous footing bear upon engineered structural fill extending down to native soil per the soils report, with a free-draining granular base and vapor barrier beneath the interior slab. The exterior finish grade slopes away from the structure with compacted backfill, maintaining a six-inch minimum clearance from the top of the foundation wall to finish grade. Footing dimensions maintain a width equal to depth, with sizing specified per plan.
FINISH GRADE, SLOPE AWAY FROM STRUCTURE BACKFILL VAPOR BARRIER AS REQUIRED BY SOILS REPORT FREE DRAINING GRANULAR BASE WIDTH = DEPTH FOOTINGS SHALL BEAR ON ENGINEERED STRUCTURAL FILL EXTENDING DOWN TO NATIVE SOILS PER PLAN AND SOILS REPORT. SEE PLAN SEE EARTHWORK NOTES AND SOILS REPORT FOR ADDITIONAL INFORMATION. 6" MIN.
