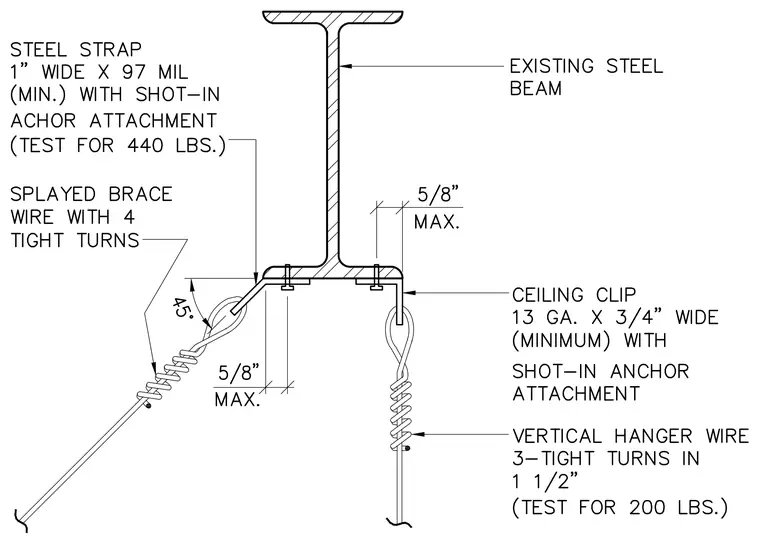

An existing steel beam supports a vertical hanger wire and a splayed brace wire via steel strap attachments secured with shot-in anchors tested for four hundred forty pounds and two hundred pounds respectively. The ceiling clip consists of a thirteen gauge by three-quarter inch wide minimum steel strap with a shot-in anchor attachment. The vertical hanger wire features three tight turns in one and one-half inches. The splayed brace wire is oriented at a forty-five degree angle with four tight turns.
