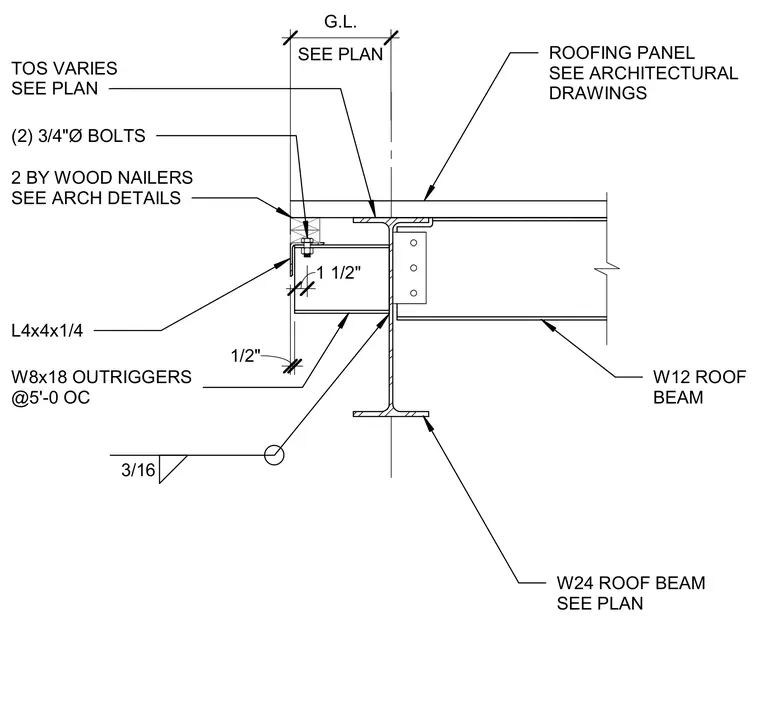

W8x18 outriggers spaced at five feet on center frame to a W12 roof beam supported by a W24 roof beam. An L4x4x1/4 angle connects the outrigger assembly, secured with two three-quarter-inch diameter bolts. Two-by wood nailers tie into the assembly per architectural details. A three-sixteenths inch fillet weld secures the outrigger profile to the supporting beam.
W8x18 OUTRIGGERS @5'-0 OC L4x4x1/4 TOS VARIES SEE PLAN ROOFING PANEL SEE ARCHITECTURAL DRAWINGS W24 ROOF BEAM SEE PLAN SEE PLAN G.L. W12 ROOF BEAM 1/2" 2 BY WOOD NAILERS SEE ARCH DETAILS 1 1/2" (2) 3/4"Ø BOLTS 3/16
