Electrical · S-4DQ4Q

Unsecure

Elements

About this detail

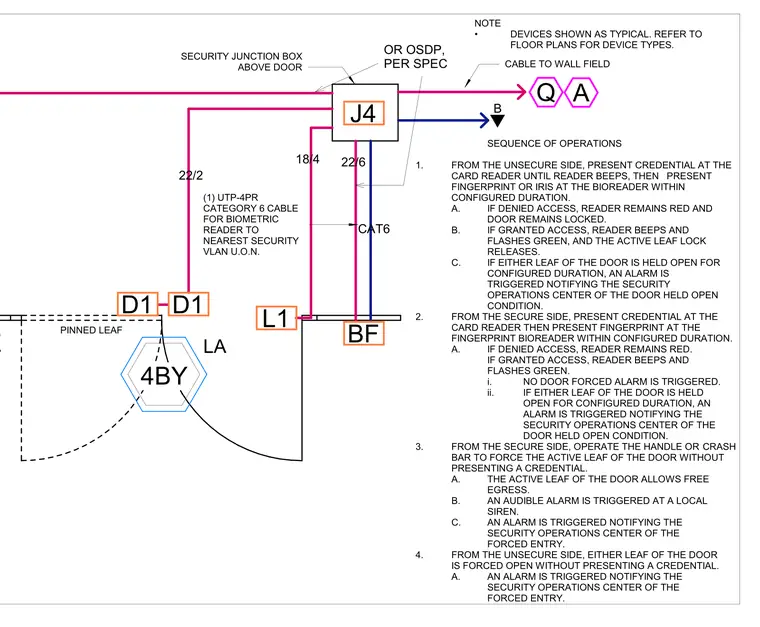

This drawing outlines the electrical and low-voltage cable connections originating from security junction box J4 above door D1. Cabling routes include an 18/4, 22/6, 22/2, and one unshielded twisted pair category 6 cable connecting biometric readers to the nearest security VLAN unless otherwise noted. A detailed sequence of operations outlines access control behavior for credential presentation, biometric verification, door held open alarms, and free egress from the secure side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
