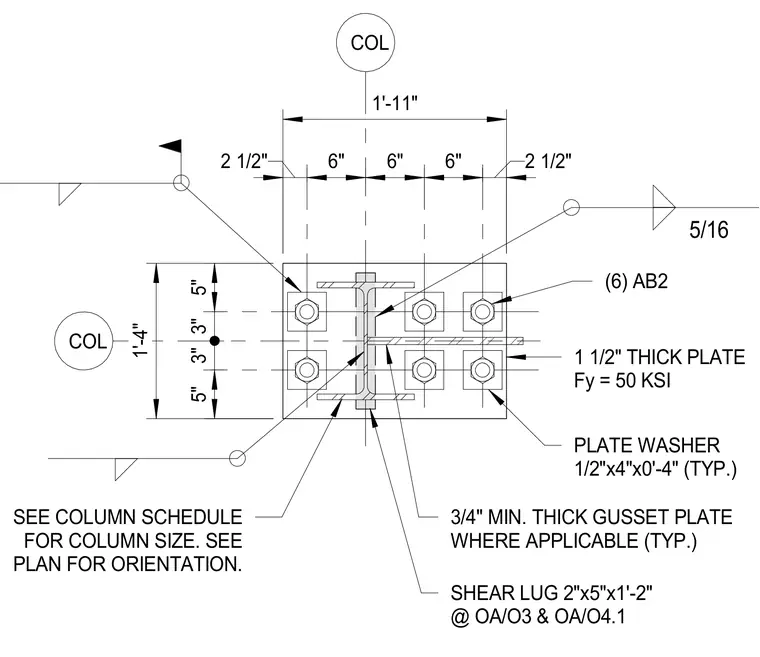

A steel column connects to a thick base plate with a 1 1/2-inch thickness and a yield strength of 50 ksi, secured by six AB2 anchor bolts with plate washers measuring 1/2 inch by 4 inches by 4 inches typically. A 3/4-inch minimum thickness gusset plate is included where applicable, alongside a 2-inch by 5-inch by 1-foot 2-inch shear lug welded with a 5/16-inch fillet weld at designated grid locations. The column size is determined per the column schedule, and orientation follows the structural plan.
SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1 1/2" THICK PLATE Fy = 50 KSI (6) AB2 PLATE WASHER 1/2"x4"x0'-4" (TYP.) 3/4" MIN. THICK GUSSET PLATE WHERE APPLICABLE (TYP.) 1'-4" 5" 3" 3" 5" 1'-11" 2 1/2" 6" 6" 6" 2 1/2" COL COL 5/16 SHEAR LUG 2"x5"x1'-2" @ OA/O3 & OA/O4.1
