Structural · S-4DN3J

BRBF Double Brace Beam Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

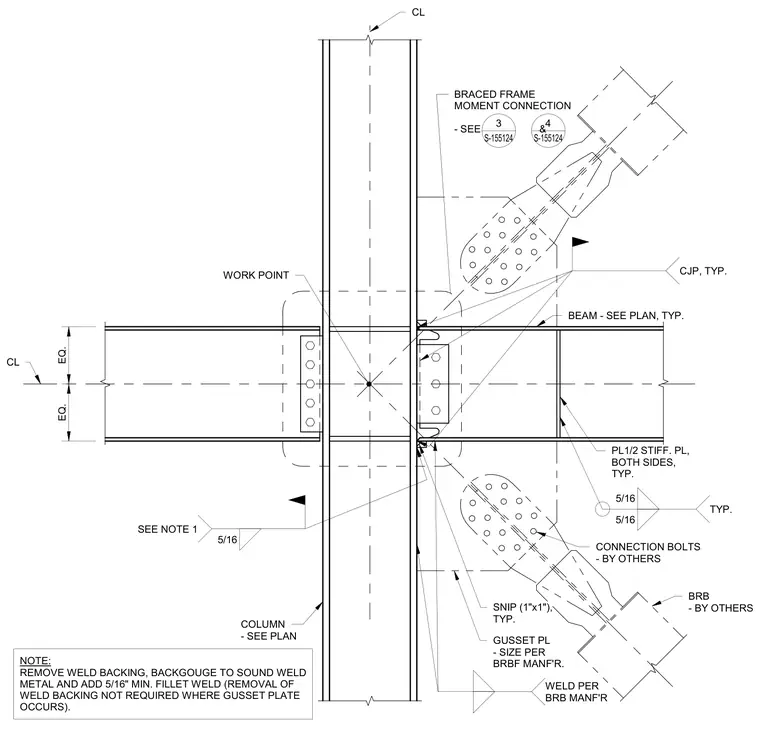

A buckling-restrained braced frame double brace-beam-column connection frames into a steel column sized per plan. Diagonal buckling-restrained braces connect via gusset plates sized per the manufacturer with typical one-inch by one-inch snips and connection bolts provided by others. Beams frame into the column flanges with typical half-inch stiffener plates on both sides and five-sixteenth-inch fillet welds. Complete joint penetration welds are specified typically, with a note requiring weld backing removal, backgouging to sound weld metal, and the addition of a five-sixteenth-inch minimum fillet weld except where the gusset plate occurs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
