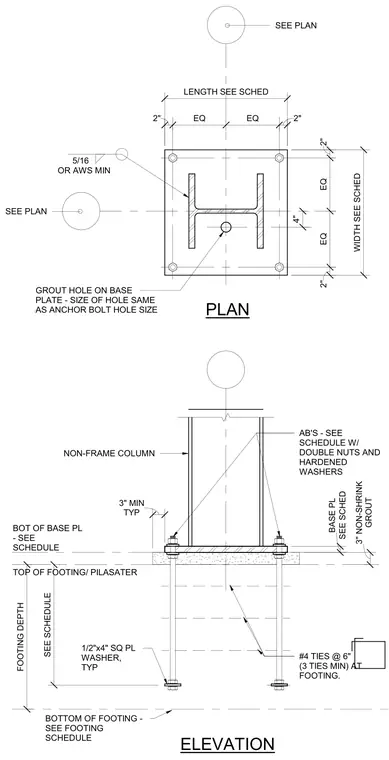

The non-frame column is welded to a base plate sized per schedule with a 5/16 fillet weld or American Welding Society minimum. Four anchor bolts with double nuts and hardened washers secure the column to the concrete footing or pilaster. A three-inch minimum non-shrink grout pad sits beneath the base plate. The anchor bolts extend down into the footing with 1/2-inch by 4-inch square plate washers and are reinforced with #4 ties at six inches on center with a minimum of three ties at the footing.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
