A slab on metal deck bears on a continuous L4x4x1/4 structural steel angle secured to a concrete wall or beam. The angle is anchored using three-quarter-inch diameter post-installed anchors spaced at three feet on center with a minimum four-and-three-quarter-inch effective embedment, with a minimum of two anchors per section. Diaphragm reinforcing, chord bars, and welded wire reinforcement tie the slab into the vertical support. Hooked bars and optional couplers accommodate wall thickness constraints while providing required development lengths.

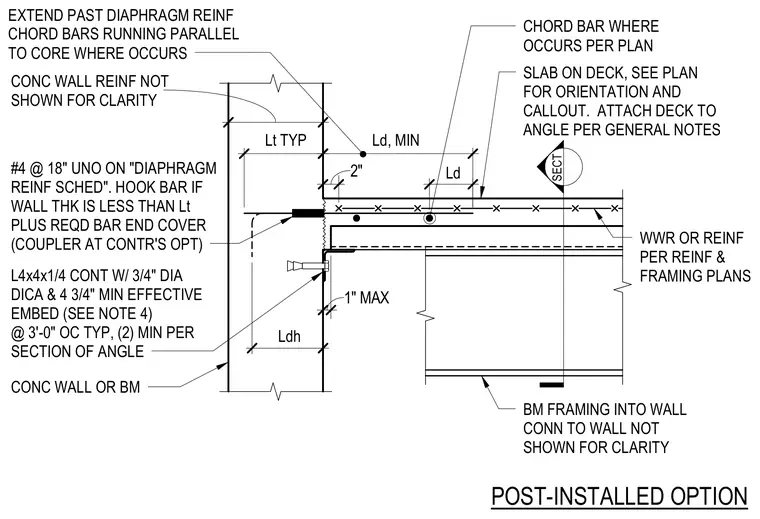

SECT L4x4x1/4 CONT W/ 3/4" DIA DICA & 4 3/4" MIN EFFECTIVE EMBED (SEE NOTE 4) @ 3'-0" OC TYP, (2) MIN PER SECTION OF ANGLE POST-INSTALLED OPTION BM FRAMING INTO WALL CONN TO WALL NOT SHOWN FOR CLARITY 10" 19" 2" 1" MAX Lt TYP Ld, MIN 5 1/2" Ld 9" Ldh 12" #4 @ 18" UNO ON "DIAPHRAGM REINF SCHED". HOOK BAR IF WALL THK IS LESS THAN Lt PLUS REQD BAR END COVER (COUPLER AT CONTR'S OPT) SLAB ON DECK, SEE PLAN FOR ORIENTATION AND CALLOUT. ATTACH DECK TO ANGLE PER GENERAL NOTES CHORD BAR WHERE OCCURS PER PLAN WWR OR REINF PER REINF & FRAMING PLANS CONC WALL OR BM CONC WALL REINF NOT SHOWN FOR CLARITY EXTEND PAST DIAPHRAGM REINF CHORD BARS RUNNING PARALLEL TO CORE WHERE OCCURS
