Structural · S-4D728

Concrete Tilt-Up Panel Opening Reinforcement and Lintel Detail

Materials

Concrete

Elements

Beams Walls Foundations / Footings Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

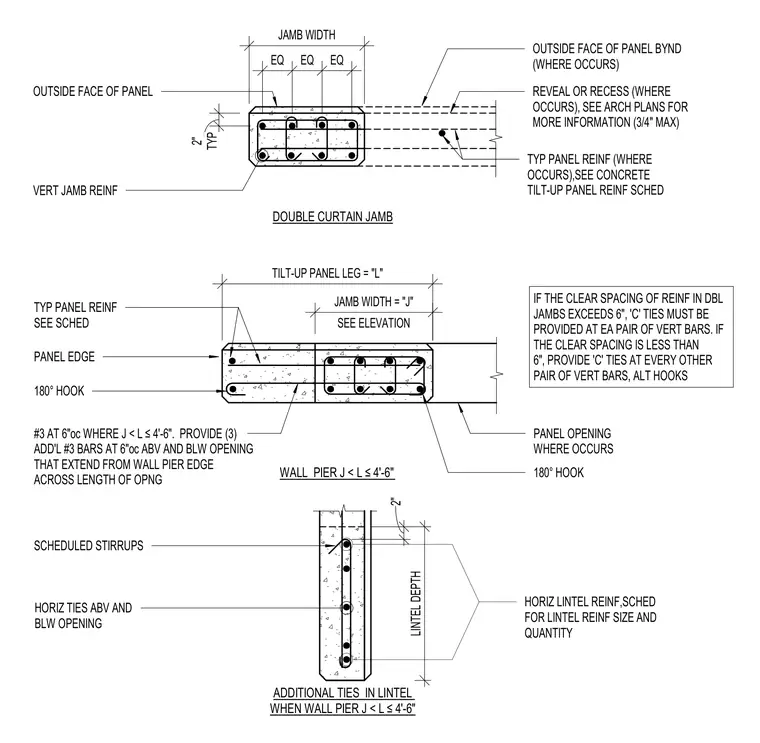

Reinforcement requirements for concrete tilt-up wall panel openings consist of double curtain jambs and lintels. The double curtain jamb section establishes vertical jamb reinforcement with a two-inch typical cover, and C-ties provided at each pair of vertical bars when clear spacing exceeds six inches, or at every other pair with alternating hooks when spacing is less than six inches. Wall piers incorporate number three bars at six inches on center for dimensions less than or equal to four feet six inches, along with three additional number three bars above and below openings extending from the wall pier edge. The lintel details incorporate scheduled stirrups, horizontal ties above and below the opening, and horizontal lintel reinforcement sized per the structural schedule.
