Edge of Deck Detail and Slab Openings

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Beams Facades / Cladding Railings / Guards Floors / Slabs Decks Reinforcing Roof / Floor Openings

About this detail

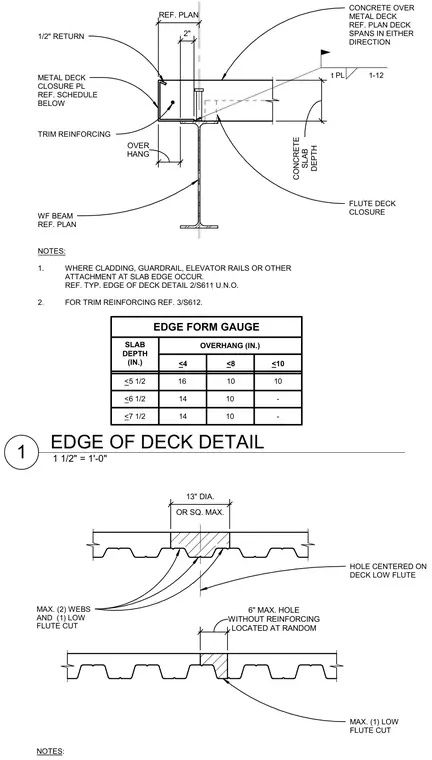

A concrete slab is poured over a metal deck supported by a wide-flange beam. The edge condition incorporates a metal deck closure plate featuring a one-half-inch return, overhang dimensions conforming to the edge form gauge schedule, and flute deck closures. Opening parameters in the metal deck permit maximum hole sizes up to thirteen inches in diameter or square with web cuts, and random unreinforced holes up to six inches maximum. Trim reinforcing per reference drawings and typical edge of deck details are required where cladding, guardrails, or elevator rails occur at the slab edge.
