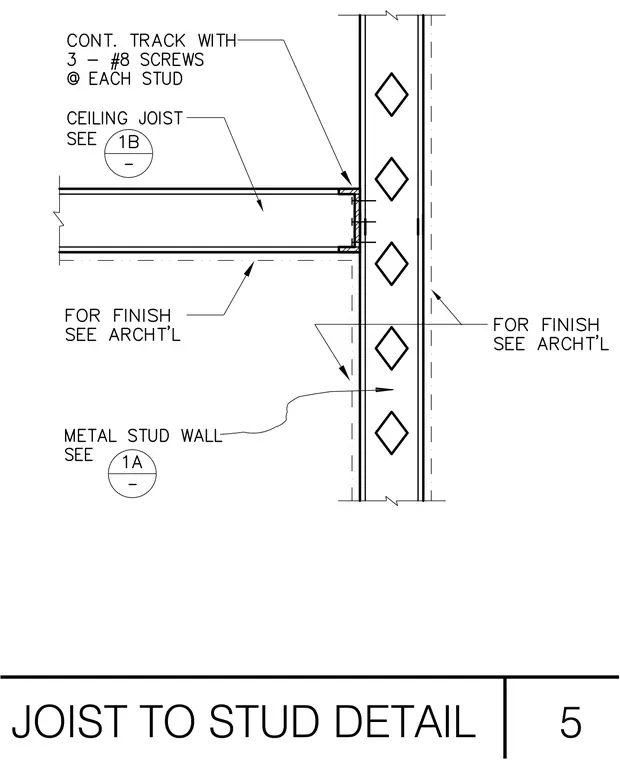

A cold-formed steel ceiling joist bears against a continuous track fastened to a vertical metal stud wall. The continuous track connects to each stud using three number eight screws. Finishes for both the ceiling and the wall are designated per the architectural drawings.
