Structural · S-4D2PM

Kinked Steel Beam Roof Splice Detail

Materials

Steel

Elements

Beams Roofs Decks Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Rebar Splice / Development Deck Attachment

About this detail

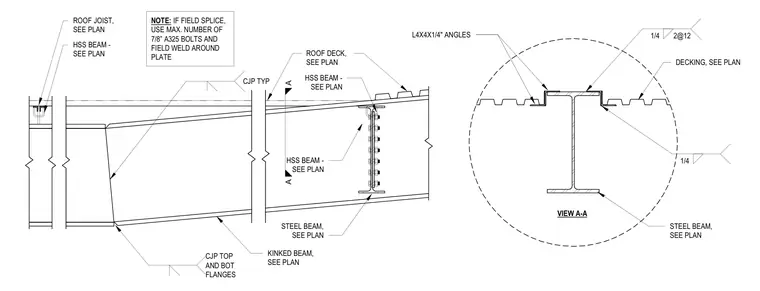

A kinked structural steel beam supports roof decking and framing elements with complete joint penetration welds at the top and bottom flanges. If configured as a field splice, the connection utilizes the maximum number of seven-eighths-inch A325 bolts with a field weld around the plate. L4x4x1/4-inch angles are secured with quarter-inch fillet welds at twelve-inch spacings to support the metal decking across the structural grid.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
