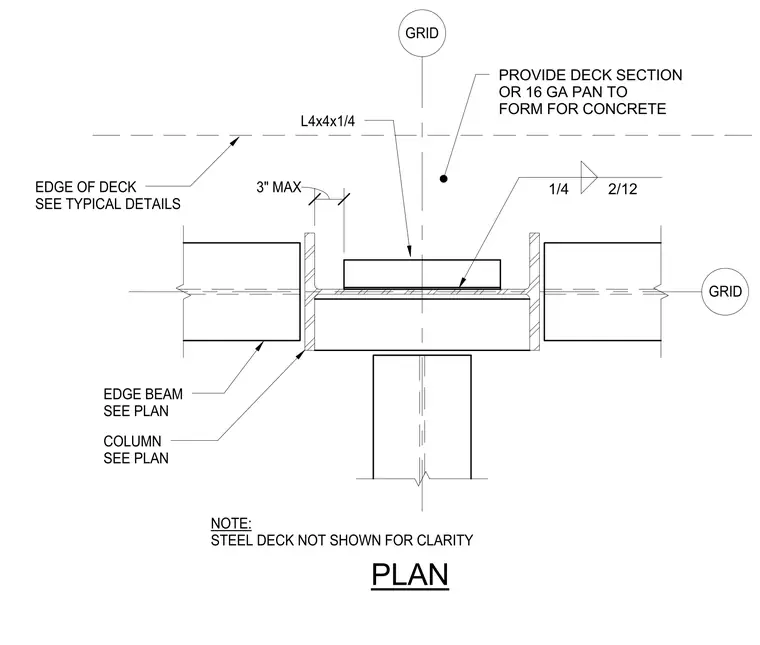

This structural plan details the exterior column and edge beam intersection aligned with the building grid. An L4x4x1/4 angle is positioned with a three-inch maximum dimension relative to the edge condition. A deck section or 16 gauge pan is provided to form the concrete, supported by edge beams sized per plan. The steel deck is omitted from the drawing for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
