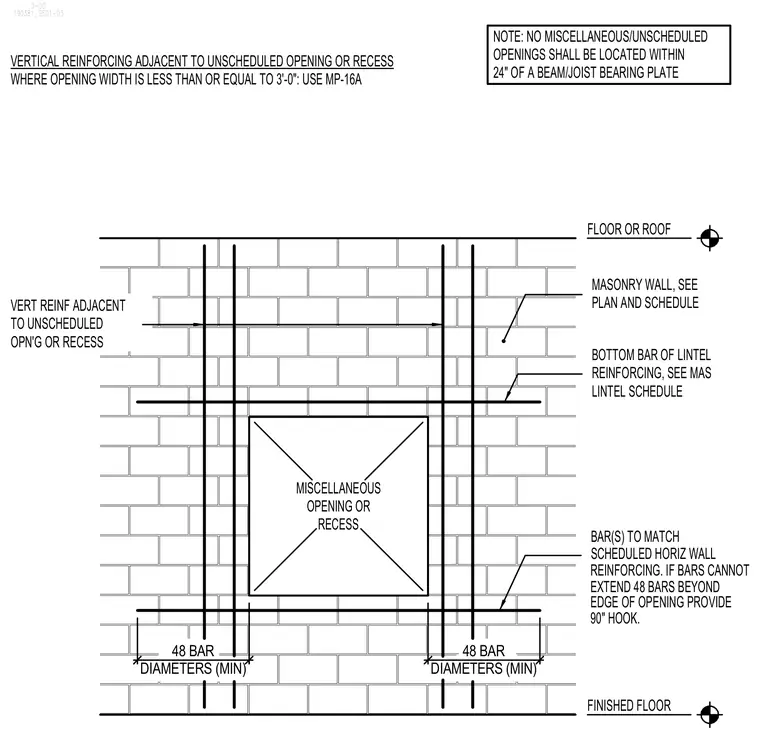

Vertical and horizontal reinforcing requirements around an unscheduled opening or recess in a masonry wall where the opening width is three feet or less. Vertical reinforcing bars are placed adjacent to the opening and must extend forty-eight bar diameters minimum beyond the edge of the opening, with ninety-degree hooks provided if bars cannot be fully developed. Horizontal reinforcing bars match the scheduled horizontal wall reinforcing and include bottom bars of lintel reinforcing sized per the masonry lintel schedule. No miscellaneous or unscheduled openings shall be located within twenty-four inches of a beam or joist bearing plate.
0-00 190381_S501-03 FLOOR OR ROOF FINISHED FLOOR VERTICAL REINFORCING ADJACENT TO UNSCHEDULED OPENING OR RECESS WHERE OPENING WIDTH IS LESS THAN OR EQUAL TO 3'-0": USE MP-16A OPENING OR MISCELLANEOUS RECESS MASONRY WALL, SEE PLAN AND SCHEDULE BOTTOM BAR OF LINTEL REINFORCING, SEE MAS LINTEL SCHEDULE BAR(S) TO MATCH REINFORCING. IF BARS CANNOT SCHEDULED HORIZ WALL VERT REINF ADJACENT TO UNSCHEDULED OPN'G OR RECESS NOTE: NO MISCELLANEOUS/UNSCHEDULED OPENINGS SHALL BE LOCATED WITHIN 24" OF A BEAM/JOIST BEARING PLATE EXTEND 48 BARS BEYOND EDGE OF OPENING PROVIDE 90" HOOK. 48 BAR DIAMETERS (MIN) 48 BAR DIAMETERS (MIN)
