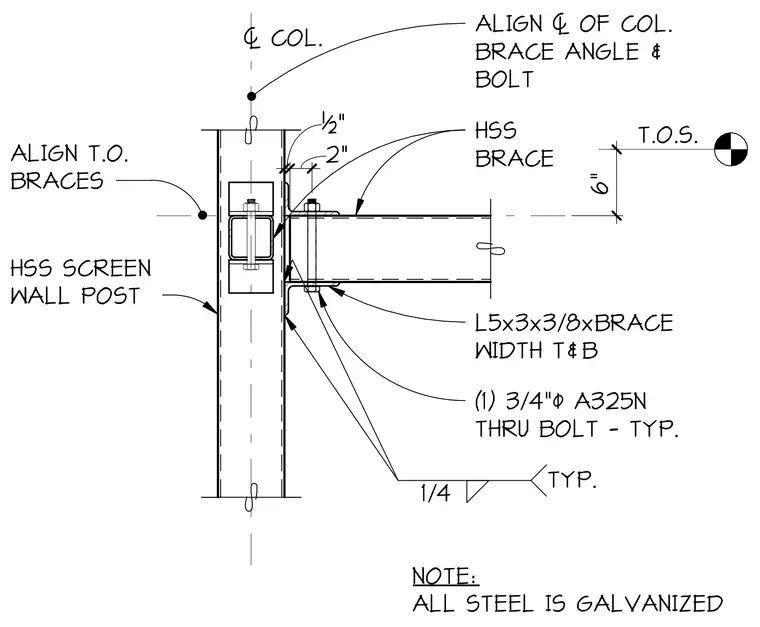

An HSS brace connects to an HSS screen wall post using top and bottom L5x3x3/8 angles matching the brace width. The connection is secured with one 3/4-inch diameter A325N through bolt typically per connection. Fillet welds of 1/4-inch size connect the angles to the post typically. All structural steel elements are galvanized.
T.O.S. COL. ½" 2" ALIGN OF COL. BRACE ANGLE & BOLT HSS BRACE 6" (1) 3/4"( A325N THRU BOLT - TYP. L5x3x3/8xBRACE WIDTH T&B ALIGN T.O. BRACES HSS SCREEN WALL POST 1/4 TYP. NOTE: ALL STEEL IS GALVANIZED
