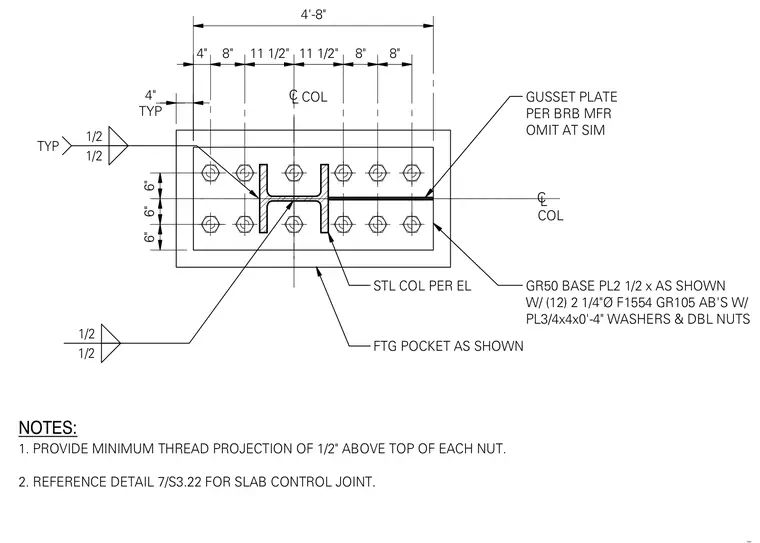

This plan detail shows a structural steel column welded to a Grade 50 base plate measuring 2-1/2 inches thick. The assembly is secured by twelve 2-1/4 inch diameter ASTM F1554 Grade 105 anchor bolts equipped with 3/4 inch by 4 inch by 4 inch washers and double nuts. A column gusset plate specified by the buckling-restrained brace manufacturer connects to the column and base plate, with a minimum thread projection of 1/2 inch required above the top of each nut. The entire base plate assembly bears within a footing pocket as shown.
NOTES: 1. PROVIDE MINIMUM THREAD PROJECTION OF 1/2" ABOVE TOP OF EACH NUT. 2. REFERENCE DETAIL 7/S3.22 FOR SLAB CONTROL JOINT. COL GUSSET PLATE PER BRB MFR OMIT AT SIM GR50 BASE PL2 1/2 x AS SHOWN W/ (12) 2 1/4"Ø F1554 GR105 AB'S W/ PL3/4x4x0'-4" WASHERS & DBL NUTS STL COL PER EL FTG POCKET AS SHOWN 1/2 1/2 1/2 1/2 TYP C L COL C L 4" 8" 11 1/2" 11 1/2" 8" 8" 6" 6" 6" TYP 4" 4'-8"
