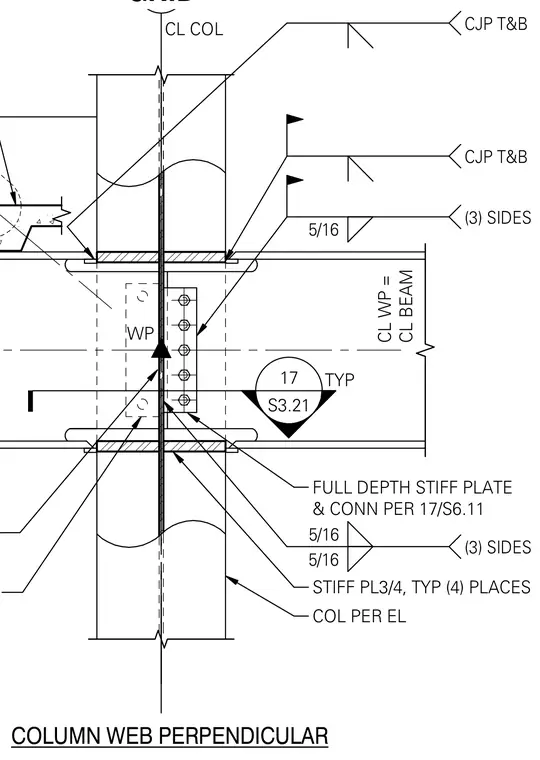

This structural steel connection detail features a beam framing into a column web with the column web perpendicular to the framing members. The connection includes three-quarter-inch stiffener plates welded to the column flanges in four typical locations with five-sixteenth-inch fillet welds on three sides. Complete joint penetration welds are specified at the top and bottom flanges. Additional connection plates are detailed per sheet S6.11, centered on the work point where the beam and column centerlines intersect.
GRID CJP T&B 5/16 (3) SIDES FULL DEPTH STIFF PLATE & CONN PER 17/S6.11 STIFF PL3/4, TYP (4) PLACES COL PER EL 5/16 5/16 (3) SIDES CJP T&B CL COL WP S3.21 17 TYP CL WP = CL BEAM COLUMN WEB PERPENDICULAR
