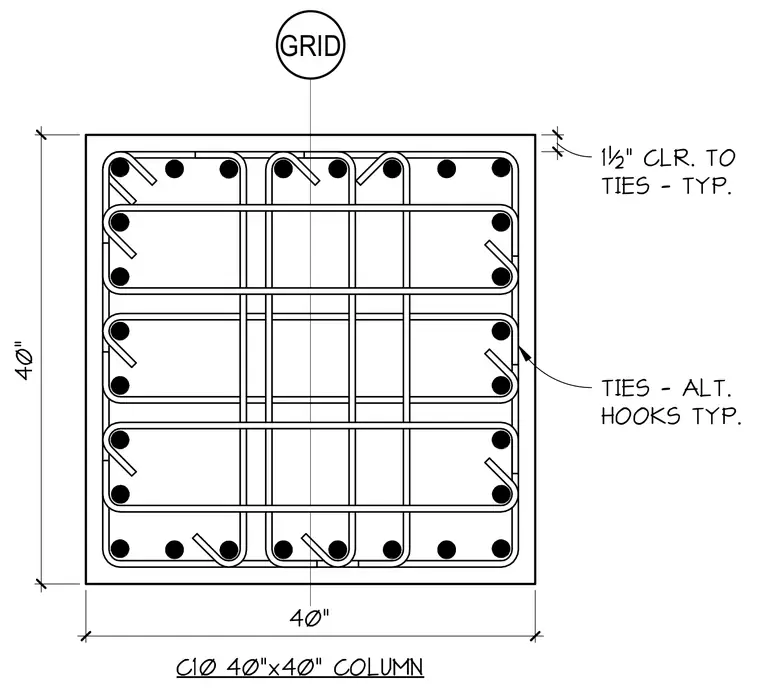

A forty-inch by forty-inch square concrete column section contains a perimeter arrangement of vertical reinforcing bars with multiple interior ties. Standard construction provides one and one-half inches of clear cover to the ties. Transverse reinforcement utilizes alternating hook orientations on typical ties. The column layout aligns symmetrically with the structural grid lines.
40" 1 1 /2" C10 40"x40" COLUMN 1½" CLR. TO TIES - TYP. GRID TIES - ALT. HOOKS TYP. 40"
