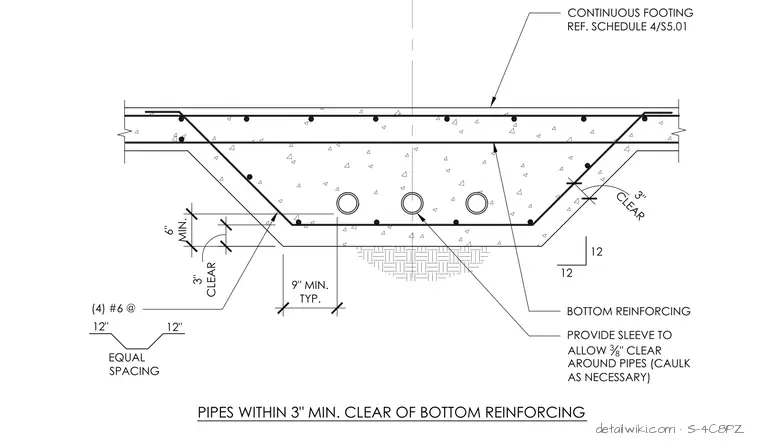

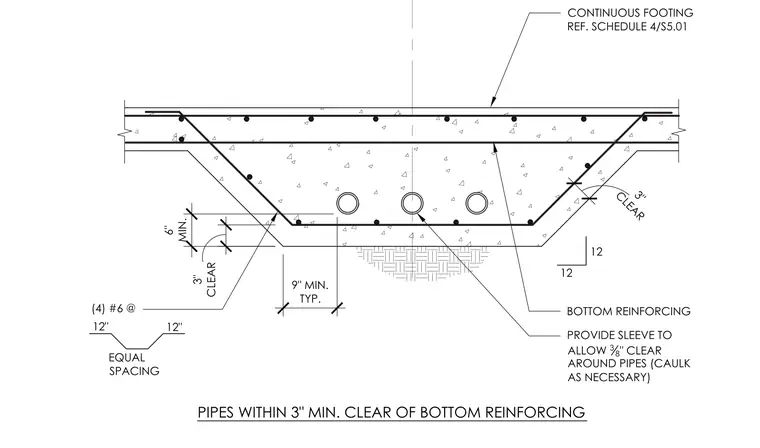

A continuous concrete footing features embedded pipes or conduits routed above the bottom reinforcing steel with a minimum three-inch clearance. A sleeve is provided around each pipe to maintain a three-eighths-inch clear annular space, with caulking applied as necessary. The assembly includes four number six reinforcing bars at the bottom with twelve-inch equal spacing, maintaining a minimum six-inch dimension and nine-inch typical dimension.
9" MIN. TYP. 3" CLEAR 6" MIN. PIPES WITHIN 3" MIN. CLEAR OF BOTTOM REINFORCING 3" CLEAR 12 12 12" 12" EQUAL SPACING (4) #6 @ BOTTOM REINFORCING PROVIDE SLEEVE TO ALLOW 3 8 " CLEAR AROUND PIPES (CAULK AS NECESSARY) CONTINUOUS FOOTING REF. SCHEDULE 4/S5.01
