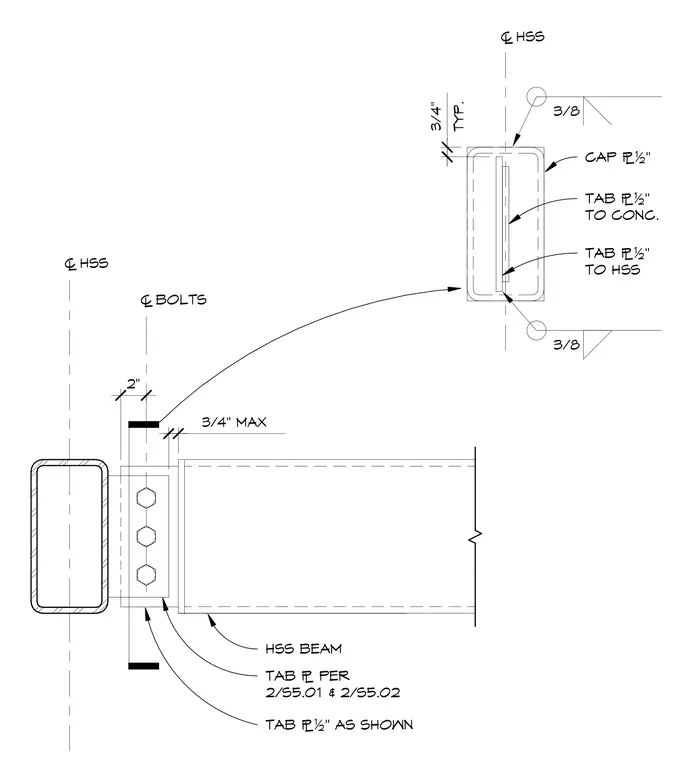

An HSS beam connects to an HSS column using a welded shear tab plate and three bolts. The connection detail includes a one-half-inch cap plate welded to the structural tubing with three-eighths-inch welds. A half-inch thick tab plate is positioned per structural drawings and welded to the concrete and hollow structural section. A two-inch clearance and three-quarter-inch maximum gap are maintained at the beam end.
HSS BEAM ® BOLTS ® HSS CAP ¯½" 3/8 ® HSS TAB ¯ PER 2/S5.01 & 2/S5.02 3/4" MAX TYP. 3/4" 2" TAB ¯½" AS SHOWN 3/8 TAB ¯½" TO CONC. TAB ¯½" TO HSS
