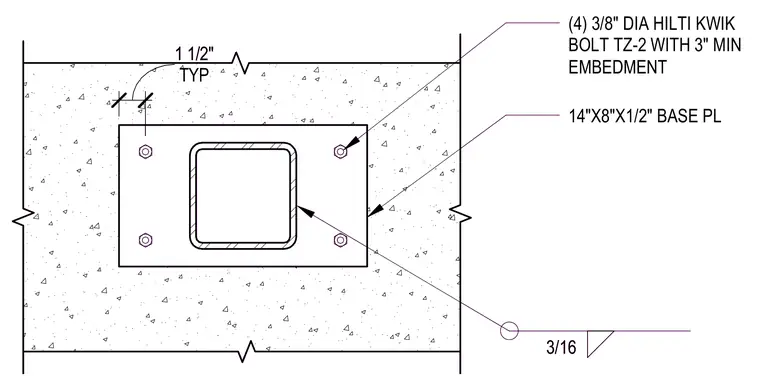

A hollow structural section member connects to a fourteen by eight by one-half inch steel base plate via a three-sixteenths inch fillet weld. The base plate is anchored to a concrete substrate using four three-eighths inch diameter Hilti Kwik Bolt TZ-two expansion anchors with a three-inch minimum embedment. Typical edge distance is one and one-half inches.
TYP 1 1/2" 14"X8"X1/2" BASE PL (4) 3/8" DIA HILTI KWIK BOLT TZ-2 WITH 3" MIN EMBEDMENT 3/16 TYP 1 1/2" 14"X8"X1/2" BASE PL (4) 3/8" DIA HILTI KWIK BOLT TZ-2 WITH 3" MIN EMBEDMENT 3/16
