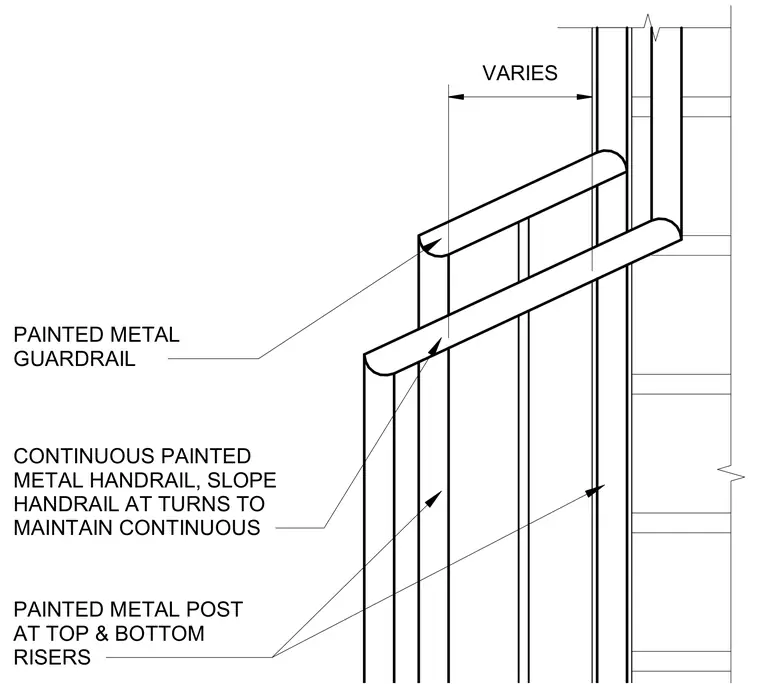

A continuous painted metal handrail follows a sloped run and curves at turns to maintain continuity alongside a painted metal guardrail. Painted metal posts anchor at the top and bottom risers, with spacing that varies along the run.
PAINTED METAL POST AT TOP & BOTTOM RISERS CONTINUOUS PAINTED METAL HANDRAIL, SLOPE HANDRAIL AT TURNS TO MAINTAIN CONTINUOUS PAINTED METAL GUARDRAIL VARIES
