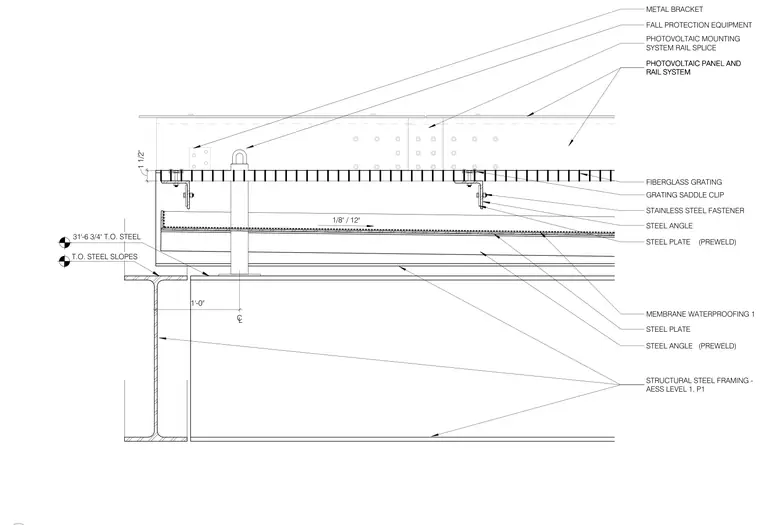

Fiberglass grating spans between steel angles secured with stainless steel fasteners and grating saddle clips over a sloped steel plate assembly with membrane waterproofing. A fall protection anchor post is mounted to a steel plate welded to the structural steel framing, which consists of architecturally exposed structural steel graded AESS Level 1, P1. Photovoltaic panel and rail systems with rail splices and metal brackets are mounted above the grating level on structural supports.
31'-6 3/4" T.O. STEEL PHOTOVOLTAIC MOUNTING SYSTEM RAIL SPLICE PHOTOVOLTAIC PANEL AND RAIL SYSTEM METAL BRACKET 31'-6 3/4" T.O. STEEL SLOPES PHOTOVOLTAIC PANEL AND RAIL SYSTEM 1/8" / 12" STEEL ANGLE MEMBRANE WATERPROOFING 1 FALL PROTECTION EQUIPMENT STEEL PLATE 1'-0" CL FIBERGLASS GRATING (PREWELD) GRATING SADDLE CLIP 1 1/2" STEEL ANGLE STAINLESS STEEL FASTENER STEEL PLATE STRUCTURAL STEEL FRAMING - AESS LEVEL 1, P1 (PREWELD)
