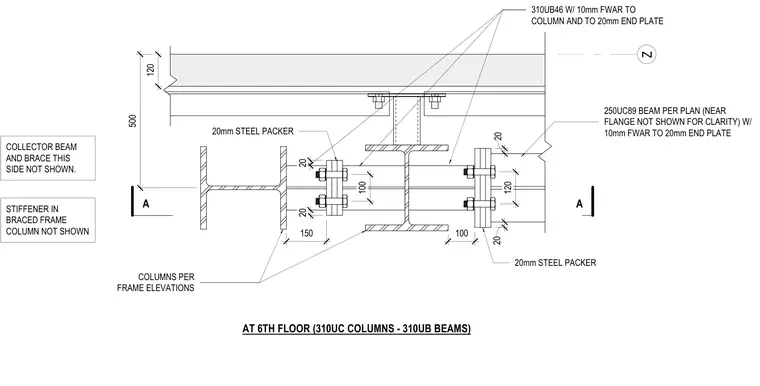

A 250UC89 beam connects to a 310UC column using a 20mm end plate welded with a 10mm fillet weld all round, utilizing a 20mm steel packer. A 310UB46 beam ties into the assembly with a 10mm fillet weld all round to the column and to a 20mm end plate, incorporating a 20mm steel packer. Stiffeners in the braced frame column and the near flange of the beam are omitted from the view for clarity.
AT 6TH FLOOR (310UC COLUMNS - 310UB BEAMS) 250UC89 BEAM PER PLAN (NEAR FLANGE NOT SHOWN FOR CLARITY) W/ 10mm FWAR TO 20mm END PLATE COLUMNS PER FRAME ELEVATIONS A A 310UB46 W/ 10mm FWAR TO COLUMN AND TO 20mm END PLATE COLLECTOR BEAM AND BRACE THIS SIDE NOT SHOWN. Z 500 120 STIFFENER IN BRACED FRAME COLUMN NOT SHOWN 20mm STEEL PACKER 150 100 20mm STEEL PACKER 20 20 120 20 20 100
