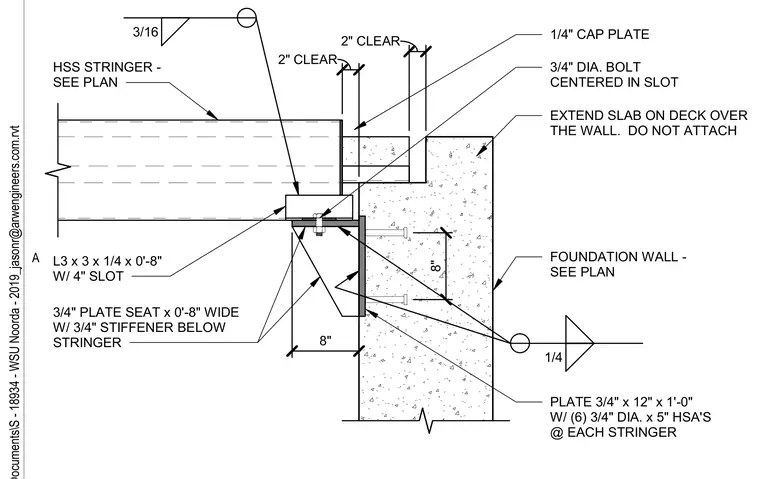

An hollow structural section stringer bears onto a three-quarter-inch plate seat with a three-quarter-inch stiffener below the stringer. A three-inch by three-inch by quarter-inch angle measuring zero feet eight inches long with a four-inch slot connects to the stringer using a three-quarter-inch diameter bolt centered in the slot. A quarter-inch cap plate tops the assembly, and a two-inch clear spacing is maintained. The foundation wall anchors a three-quarter-inch by twelve-inch by one-foot-zero-inch plate with six three-quarter-inch diameter by five-inch heavy stud anchors at each stringer. The slab on deck extends over the wall and is left unattached from the foundation wall per plan.
8" 1/4 3/16 1/4" CAP PLATE 3/4" DIA. BOLT CENTERED IN SLOT EXTEND SLAB ON DECK OVER THE WALL. DO NOT ATTACH FOUNDATION WALL - SEE PLAN PLATE 3/4" x 12" x 1'-0" W/ (6) 3/4" DIA. x 5" HSA'S @ EACH STRINGER HSS STRINGER - SEE PLAN L3 x 3 x 1/4 x 0'-8" W/ 4" SLOT 3/4" PLATE SEAT x 0'-8" WIDE W/ 3/4" STIFFENER BELOW STRINGER 8" 2" CLEAR 2" CLEAR A
