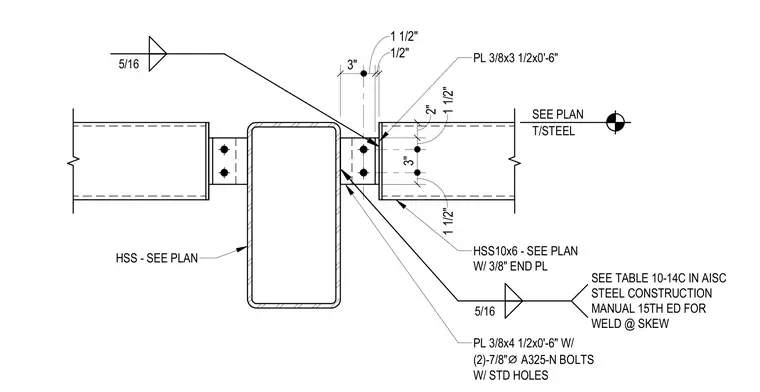

An HSS10x6 hollow structural section canopy beam connects to a main support column using a three-eighths-inch thick end plate welded all around with a five-sixteenths-inch fillet weld. A three-eighths by four-and-a-half-inch by zero-foot-six-inch plate connects via two seven-eighths-inch diameter A325-N bolts with standard holes. A companion three-eighths by three-and-a-half-inch by zero-foot-six-inch plate provides additional connection capacity. Fillet welds sized at five-sixteenths-inch secure the plates according to Table 10-14C in the AISC Steel Construction Manual 15th Edition for skewed plate conditions.
3" 1 1/2" 1/2" 1 1/2" 3" 1 1/2" 2" HSS - SEE PLAN 5/16 PL 3/8x3 1/2x0'-6" HSS10x6 - SEE PLAN W/ 3/8" END PL 5/16 SEE TABLE 10-14C IN AISC STEEL CONSTRUCTION MANUAL 15TH ED FOR WELD @ SKEW PL 3/8x4 1/2x0'-6" W/ (2)-7/8" ⌀ A325-N BOLTS W/ STD HOLES T/STEEL SEE PLAN
