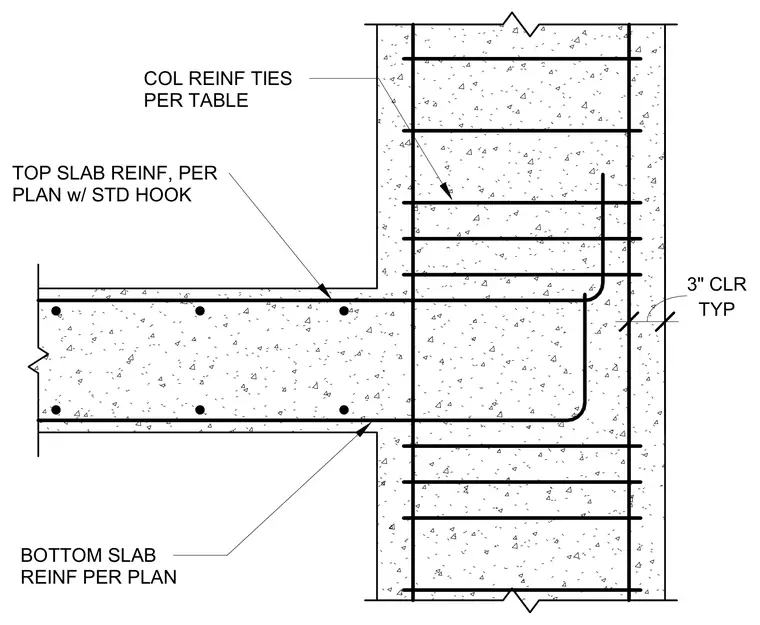

Top slab reinforcement extends into the concrete column with a standard hook per plan. Bottom slab reinforcement continues into the support zone. Column reinforcing ties are spaced according to the structural schedule. A three-inch clear cover is maintained typically throughout the assembly.
TOP SLAB REINF, PER PLAN w/ STD HOOK BOTTOM SLAB REINF PER PLAN COL REINF TIES PER TABLE TYP 3" CLR
