Structural · S-4BQEE

Open Web Steel Joist Bearing at Wide Flange Beam

Materials

Metal (misc.)

Elements

Beams Decks Trusses

Connections

Deck Attachment

About this detail

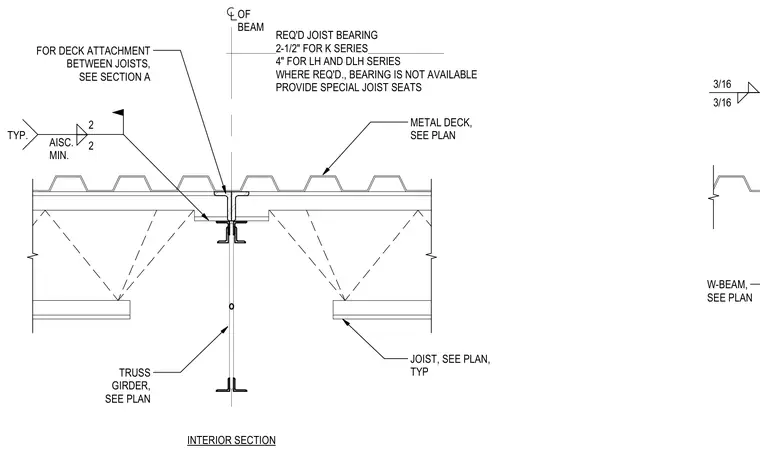

An interior section details open web steel joists bearing on a wide flange support beam beneath a metal deck. Required joist bearing lengths are two and a half inches for K series joists and four inches for long span and deep long span series. Special joist seats are provided where standard bearing is unavailable. Standard fillet welds of three-sixteenths inch secure components per American Institute of Steel Construction minimum requirements. A truss girder is positioned centrally with deck attachment detailed elsewhere.
