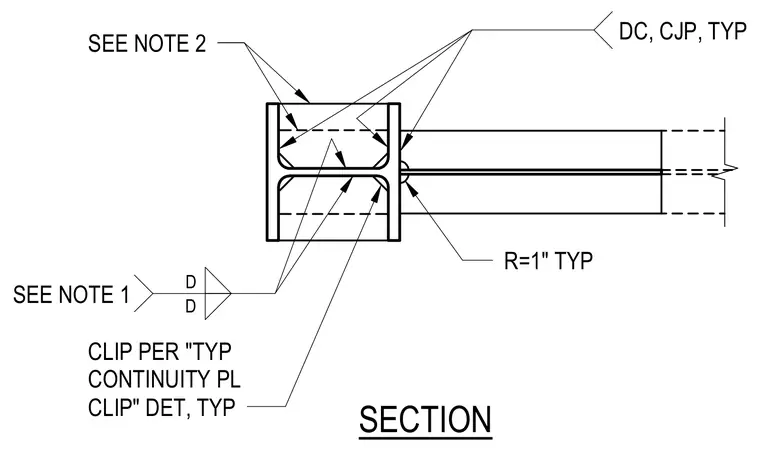

Continuity plates are welded between the flanges of a wide-flange steel column to transfer high concentrated forces from a connecting beam. The connection utilizes complete joint penetration welds with typical one-inch radius corner cuts on the continuity plates. Specific clips and plates are detailed per the typical continuity plate clip detail, with reference notes governing fabrication and welding requirements.
SECTION CLIP PER "TYP CONTINUITY PL CLIP" DET, TYP SEE NOTE 2 R=1" TYP DC, CJP, TYP SEE NOTE 1 D D
