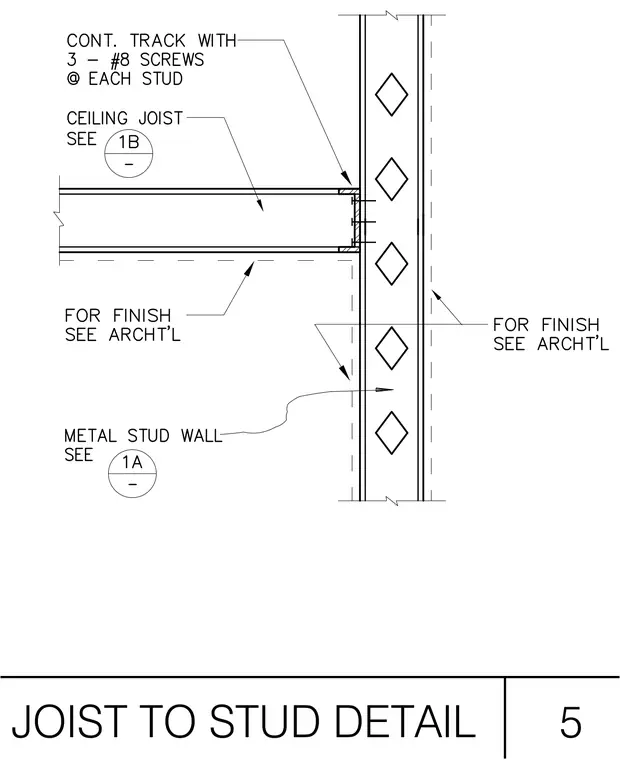

A ceiling joist frames into a continuous track at a metal stud wall. The track is fastened to each stud with three number eight screws. Finishes are coordinated per architectural drawings.
