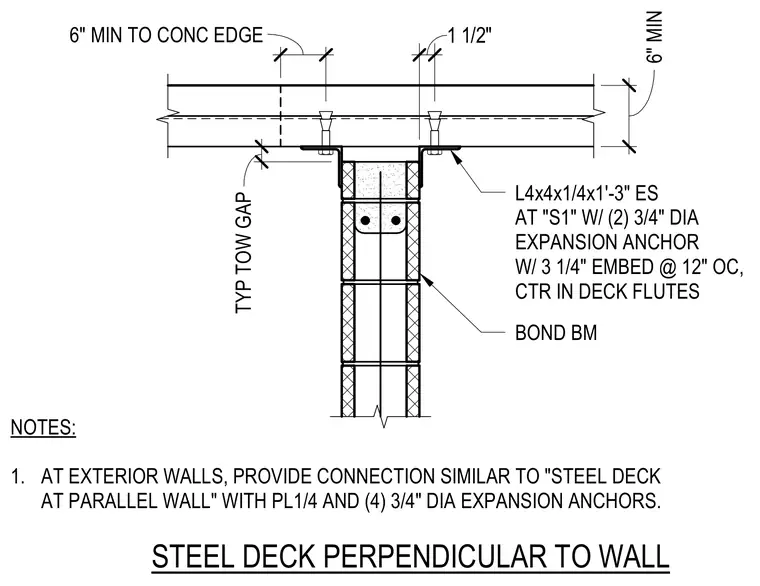

A structural steel angle measuring four inches by four inches by one-fourth inch and one foot three inches long is anchored to each side of a concrete bond beam wall with two three-quarter-inch diameter expansion anchors having a three-and-one-fourth-inch embedment spaced at twelve inches on center centered in the deck flutes. The steel deck runs perpendicular to the wall maintaining a typical top-of-wall gap. Exterior walls require a similar connection utilizing a one-quarter-inch plate and four three-quarter-inch diameter expansion anchors.
L4x4x1/4x1'-3" ES AT "S1" W/ (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC, CTR IN DECK FLUTES BOND BM STEEL DECK PERPENDICULAR TO WALL 1 1/2" TYP TOW GAP 4 1/2" 6" 6" MIN 6" MIN TO CONC EDGE 1 1/2" NOTES: 1. AT EXTERIOR WALLS, PROVIDE CONNECTION SIMILAR TO "STEEL DECK AT PARALLEL WALL" WITH PL1/4 AND (4) 3/4" DIA EXPANSION ANCHORS.
