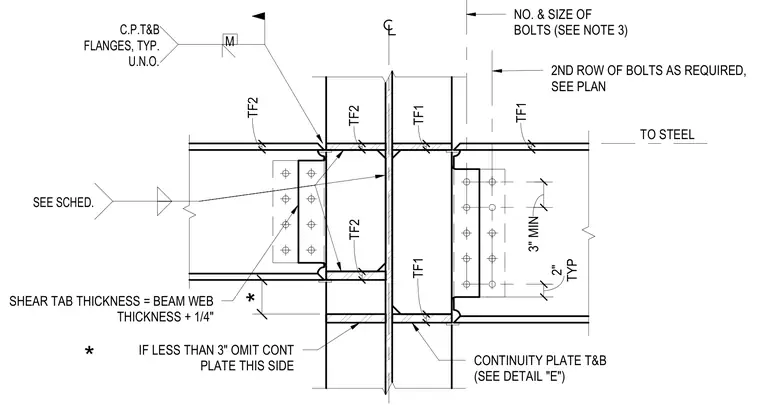

Steel beams connect to a column web using a bolted single plate shear tab welded to the column face, with the shear tab thickness equal to the beam web thickness plus one-quarter inch. Continuity plates are provided at the top and bottom flanges on both sides of the column, featuring weld symbols and dimensions such as a three-inch minimum spacing and two-inch typical dimensions. A second row of bolts is added as required per plan. Continuity plates are omitted on a specific side if the dimension is less than three inches.
NO. & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN TO STEEL CONTINUITY PLATE T&B (SEE DETAIL "E") SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" IF LESS THAN 3" OMIT CONT PLATE THIS SIDE * SEE SCHED. TF2 TF1 3" MIN TYP 2" TF1 TF2 TF1 TF2 C.P.T&B FLANGES, TYP. U.N.O. M *
