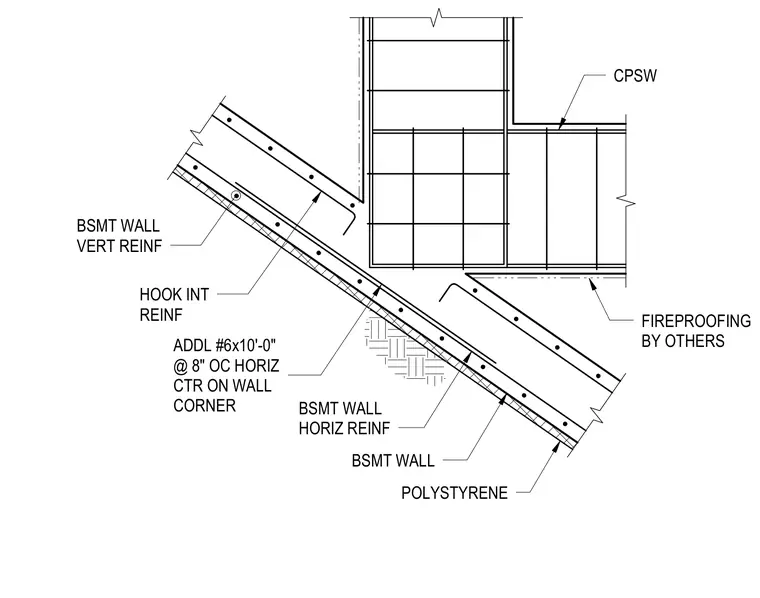

A concrete basement wall corner junction reinforced with vertical and horizontal reinforcing bars. Additional number six horizontal reinforcing bars ten feet long are placed at eight inches on center centered on the wall corner with interior hook reinforcement. A layer of polystyrene insulation and basement wall fireproofing by others are applied along the exterior face of the wall.
BSMT WALL FIREPROOFING BY OTHERS BSMT WALL VERT REINF BSMT WALL HORIZ REINF ADDL #6x10'-0" @ 8" OC HORIZ CTR ON WALL CORNER HOOK INT REINF CPSW POLYSTYRENE
