Structural · S-4B2JW

W Girder and W Beam with Equal Depth

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

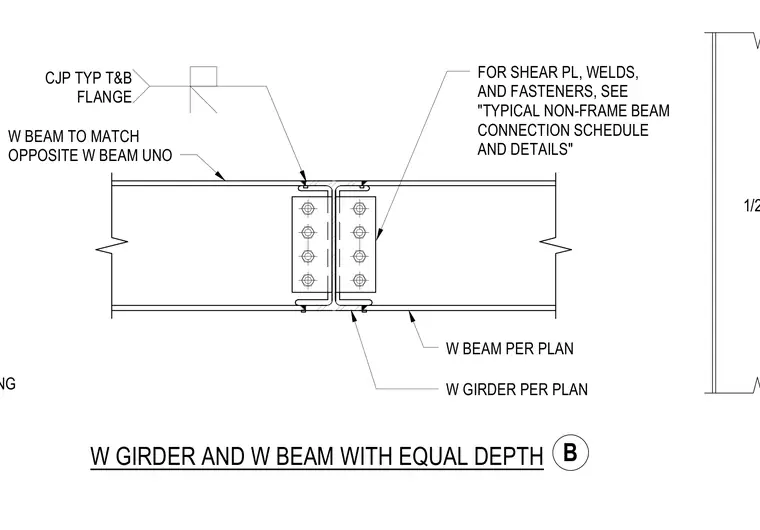

An equal-depth wide flange beam connects to a wide flange girder sized per plan, maintaining a one-half inch clearance. A complete-joint-penetration weld is applied typically at the top and bottom flanges. Shear plates, welds, and fasteners follow the typical non-frame beam connection schedule and details. The intersecting wide flange beam matches the opposite wide flange beam unless noted otherwise.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
