A hollow structural section brace connects to a steel tank wall using a three-eighths-inch by eight-inch by one-foot plate secured with three three-quarter-inch diameter ASTM A325 through-bolts. The tank shell is provided by others, with the connection plate engineered by the tank designer. Three-sixteenth-inch fillet welds are specified above and below the brace connection.

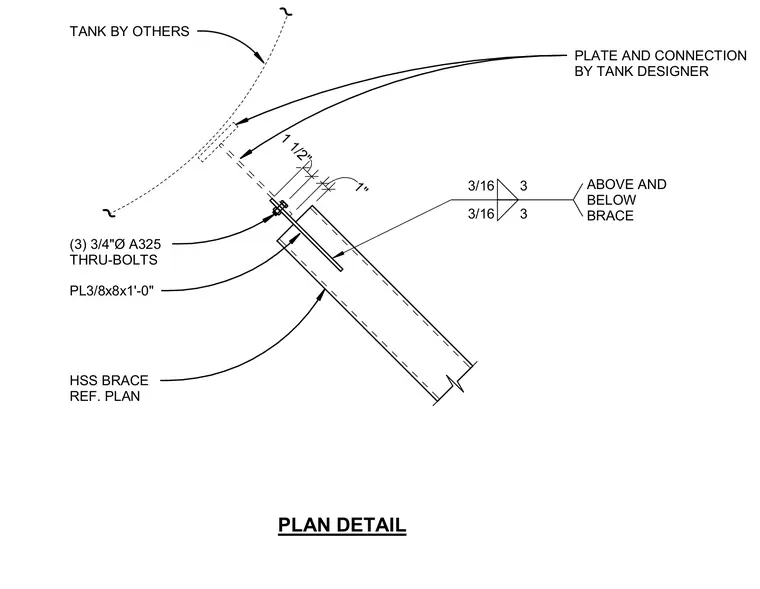

TANK BY OTHERS PLATE AND CONNECTION BY TANK DESIGNER (3) 3/4"Ø A325 THRU-BOLTS PL3/8x8x1'-0" HSS BRACE REF. PLAN 3/16 3 3/16 3 ABOVE AND BELOW BRACE PLAN DETAIL 1" 1 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
