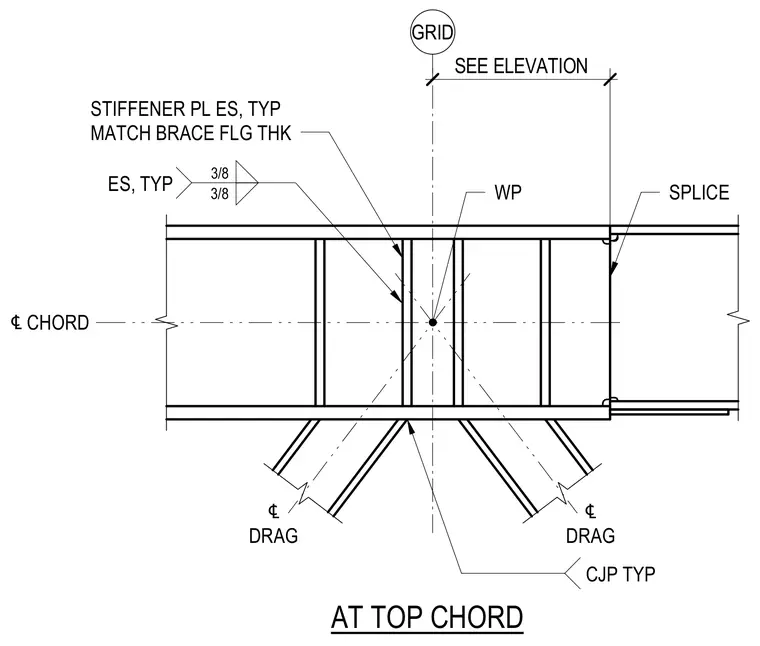

This structural detail shows a truss top chord intersection with diagonal brace members framed at a common work point. Stiffener plates are placed on each side, with their thickness matched to the bracing flange thickness. Three-eighths inch complete joint penetration welds secure the connection assembly at the grid line. A chord splice is located adjacent to the connection point, aligned with the drag members.
AT TOP CHORD GRID SPLICE STIFFENER PL ES, TYP MATCH BRACE FLG THK ES, TYP 3/8 3/8 CJP TYP WP ℄ CHORD ℄ DRAG ℄ DRAG SEE ELEVATION
