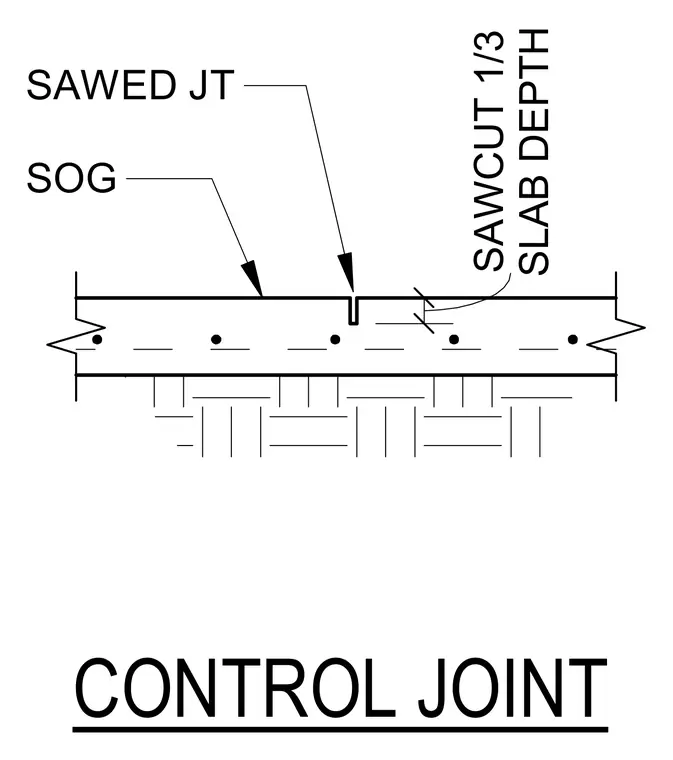

A slab on grade features a sawed joint cut to one-third of the total slab depth to control cracking from shrinkage. The concrete slab rests on a prepared subgrade and contains embedded reinforcing steel.
