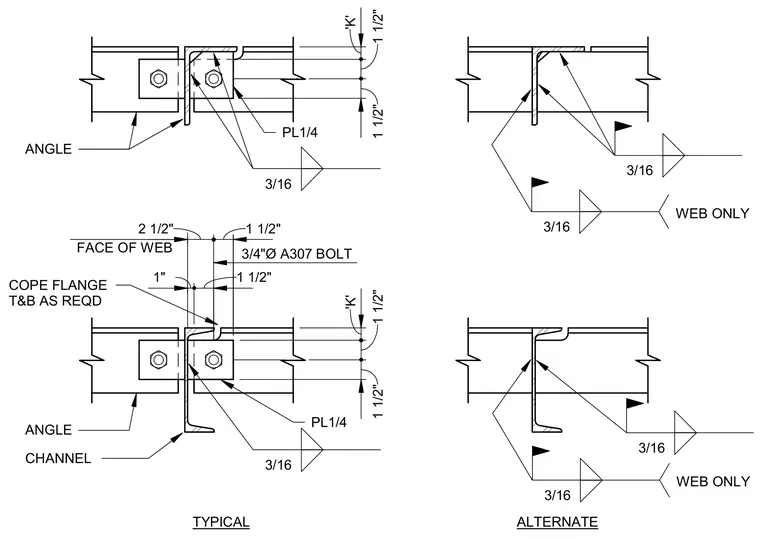

Steel framing connections feature structural angles and channel profiles with coped flanges at top and bottom as required. Connections are secured using three-quarter-inch diameter A307 bolts and quarter-inch plates, supplemented by three-sixteenth-inch fillet welds specified for the web only in both typical and alternate configurations.
ANGLE TYPICAL ALTERNATE PL1/4 ANGLE PL1/4 CHANNEL COPE FLANGE T&B AS REQD 'K' 1 1/2" 1 1/2" 1" 1 1/2" 2 1/2" 1 1/2" 'K' 1 1/2" 1 1/2" 3/16 WEB ONLY 3/16 3/16 WEB ONLY 3/16 3/16 3/16 3/4"Ø A307 BOLT FACE OF WEB
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
