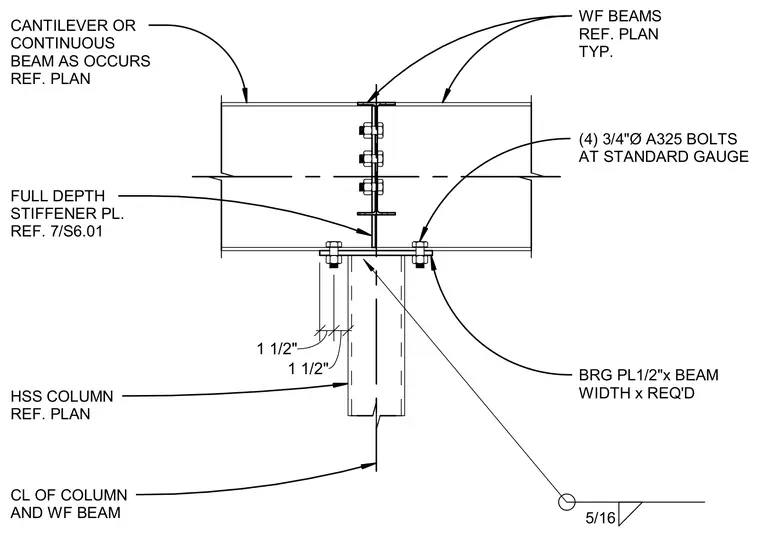

Continuous or cantilevered wide flange beams frame over a hollow structural section column with a centered centerline alignment. A bearing plate measuring 1/2 inch by beam width by required length sits atop the column and connects with four 3/4 inch diameter A325 bolts at standard gauge. A full-depth stiffener plate is welded to the web with a 5/16 inch fillet weld. The beams are sized per plan and attach with standard connection details.
WF BEAMS REF. PLAN TYP. CL OF COLUMN AND WF BEAM HSS COLUMN REF. PLAN FULL DEPTH STIFFENER PL. REF. 7/S6.01 (4) 3/4"Ø A325 BOLTS AT STANDARD GAUGE BRG PL1/2"x BEAM WIDTH x REQ'D 5/16 CANTILEVER OR CONTINUOUS BEAM AS OCCURS REF. PLAN 1 1/2" 1 1/2"
