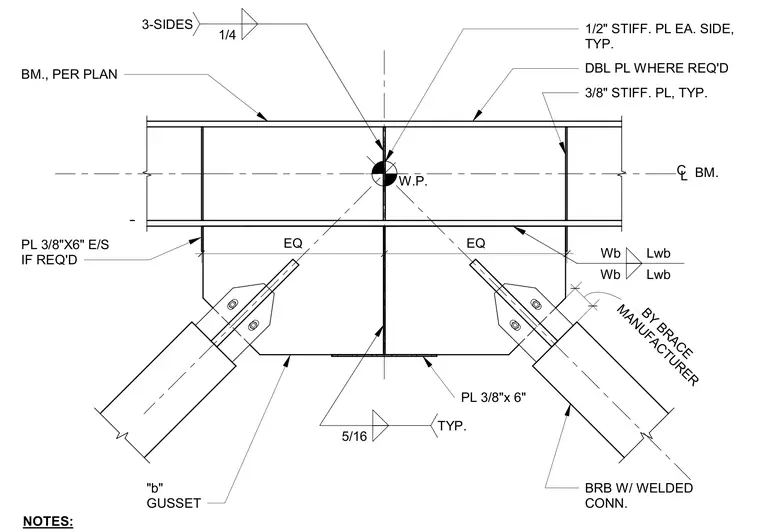

A buckling-restrained brace connects to a steel beam via a three-eighths-inch by six-inch gusset plate centered on a work point. Half-inch stiffener plates are provided on each side of the beam web, accompanied by three-eighths-inch stiffener plates welded with one-quarter-inch fillet welds on three sides typically. Additional three-eighths-inch by six-inch plates are added on each side where required, and five-sixteenth-inch fillet welds are applied typically. The buckling-restrained brace features a welded connection provided by the brace manufacturer.
BM., PER PLAN W.P. "b" GUSSET PL 3/8"X6" E/S IF REQ'D PL 3/8"x 6" BRB W/ WELDED CONN. 1/2" STIFF. PL EA. SIDE, TYP. NOTES: 3/8" STIFF. PL, TYP. 3-SIDES 1/4 Wb Lwb Wb Lwb TYP. 5/16 MANUFACTURER BY BRACE CL BM. DBL PL WHERE REQ'D EQ EQ
