Structural · S-4AFZ6

Typical Masonry Construction at Corners

Materials

Elements

About this detail

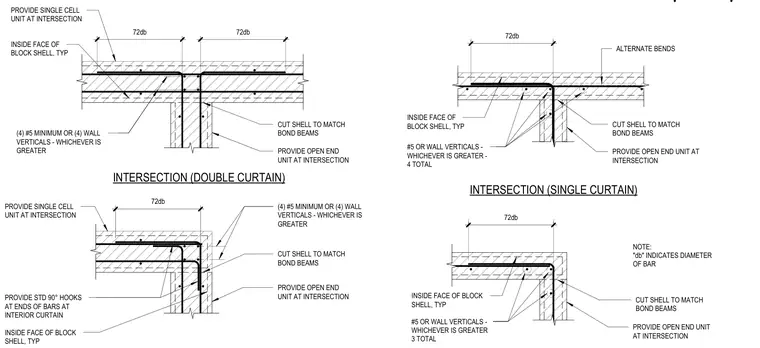

These masonry corner and intersection details show reinforced concrete masonry units with open-end units and cut shells to match bond beams. The double curtain intersection requires a minimum of four number five bars or four wall verticals, whichever is greater, with standard 90-degree hooks at the ends of interior curtain bars. The single curtain intersection specifies either number five bars or wall verticals totaling three bars minimum with alternate bends. Lap lengths are specified as seventy-two times the bar diameter.
