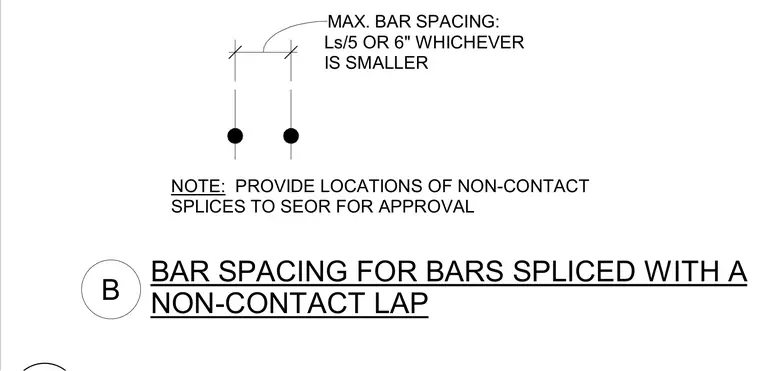

Non-contact lap splice spacing for reinforcing bars is limited to the lap length divided by five or six inches, whichever is smaller. The locations of non-contact splices must be submitted to the structural engineer of record for approval.
NOTE: PROVIDE LOCATIONS OF NON-CONTACT SPLICES TO SEOR FOR APPROVAL B BAR SPACING FOR BARS SPLICED WITH A NON-CONTACT LAP Ls/5 OR 6" WHICHEVER IS SMALLER MAX. BAR SPACING:
