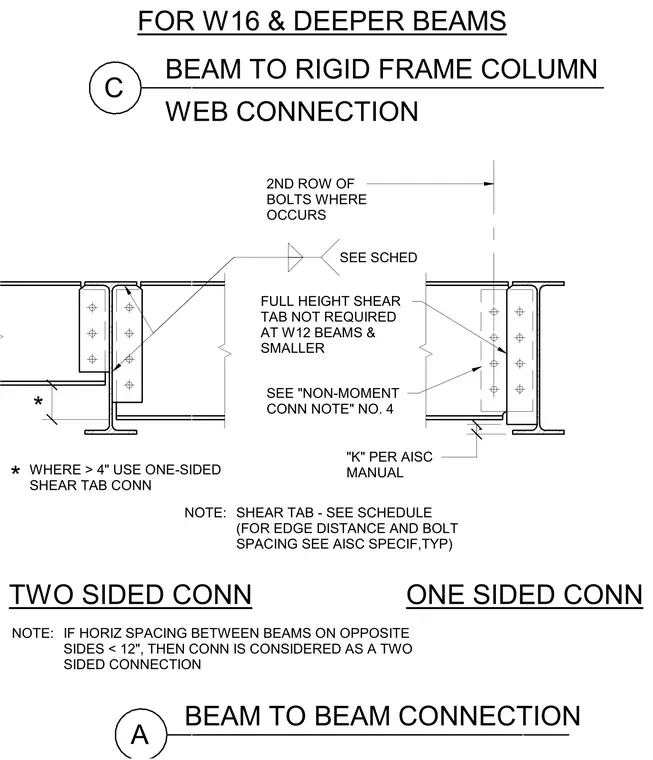

A beam to rigid frame column web connection for W16 and deeper beams distinguishes between one-sided and two-sided connections based on a horizontal spacing threshold of twelve inches between beams on opposite sides. A full height shear tab is noted as not required at W12 beams and smaller. Edge distance and bolt spacing follow American Institute of Steel Construction specifications per the schedule. Where the spacing is greater than four inches, a one-sided shear tab connection is used.
BEAM TO BEAM CONNECTION A TWO SIDED CONN ONE SIDED CONN BEAM TO RIGID FRAME COLUMN C WEB CONNECTION FOR W16 & DEEPER BEAMS NOTE: IF HORIZ SPACING BETWEEN BEAMS ON OPPOSITE SIDES < 12", THEN CONN IS CONSIDERED AS A TWO SIDED CONNECTION NOTE: SHEAR TAB - SEE SCHEDULE (FOR EDGE DISTANCE AND BOLT SPACING SEE AISC SPECIF,TYP) SEE "NON-MOMENT CONN NOTE" NO. 4 "K" PER AISC MANUAL WHERE > 4" USE ONE-SIDED SHEAR TAB CONN FULL HEIGHT SHEAR TAB NOT REQUIRED AT W12 BEAMS & SMALLER * * . SEE SCHED . 2ND ROW OF BOLTS WHERE OCCURS
