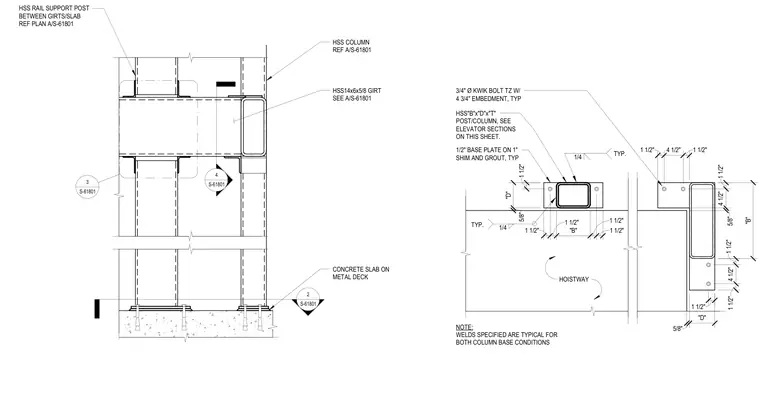

An elevator steel base plate assembly featuring an HSS post or column welded to a one-half-inch base plate resting on a one-inch shim and grout pack. The base plate is anchored to the concrete slab on metal deck using three-quarter-inch diameter Kwik Bolt TZ expansion anchors with four-and-three-quarter-inch embedment. Typical one-quarter-inch fillet welds secure the structural steel connections as specified for both column base conditions. An HSS14x6x5/8 girt frames into the assembly with HSS rail support posts positioned between the girts and slab.
2 S-61801 S-61801 3 HSS COLUMN REF A/S-61801 HSS14x6x5/8 GIRT SEE A/S-61801 HSS RAIL SUPPORT POST BETWEEN GIRTS/SLAB REF PLAN A/S-61801 CONCRETE SLAB ON METAL DECK 4 S-61801 1 1/2" 4 1/2" 1 1/2" 1 1/2" 4 1/2" 1 1/2" 1 1/2" 1 1/2" "B" 1 1/2" 1 1/2" 1 1/2" "D" 5/8" 5/8" "D" HOISTWAY 1/2" BASE PLATE ON 1" SHIM AND GROUT, TYP 3/4" Ø KWIK BOLT TZ W/ 4 3/4" EMBEDMENT, TYP HSS"B"x"D"x"T" POST/COLUMN, SEE ELEVATOR SECTIONS ON THIS SHEET. 1/4 TYP. 1/4 TYP. NOTE: WELDS SPECIFIED ARE TYPICAL FOR BOTH COLUMN BASE CONDITIONS "B" 1 1/2" 4 1/2" 5/8" 1 1/2"
