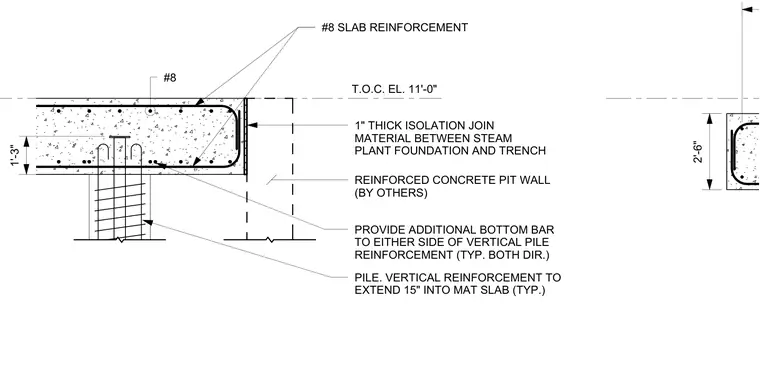

A reinforced concrete mat slab bears on a pile with vertical reinforcement extending fifteen inches into the slab. Number 8 slab reinforcement is provided throughout, accompanied by additional bottom bars placed to either side of the vertical pile reinforcement in both directions. A one-inch thick isolation joint material separates the steam plant foundation and trench from the reinforced concrete pit wall.
2'-6" T.O.C. EL. 11'-0" REINFORCED CONCRETE PIT WALL (BY OTHERS) 1" THICK ISOLATION JOIN MATERIAL BETWEEN STEAM PLANT FOUNDATION AND TRENCH 1'-3" PILE. VERTICAL REINFORCEMENT TO EXTEND 15" INTO MAT SLAB (TYP.) PROVIDE ADDITIONAL BOTTOM BAR TO EITHER SIDE OF VERTICAL PILE REINFORCEMENT (TYP. BOTH DIR.) #8 SLAB REINFORCEMENT #8
