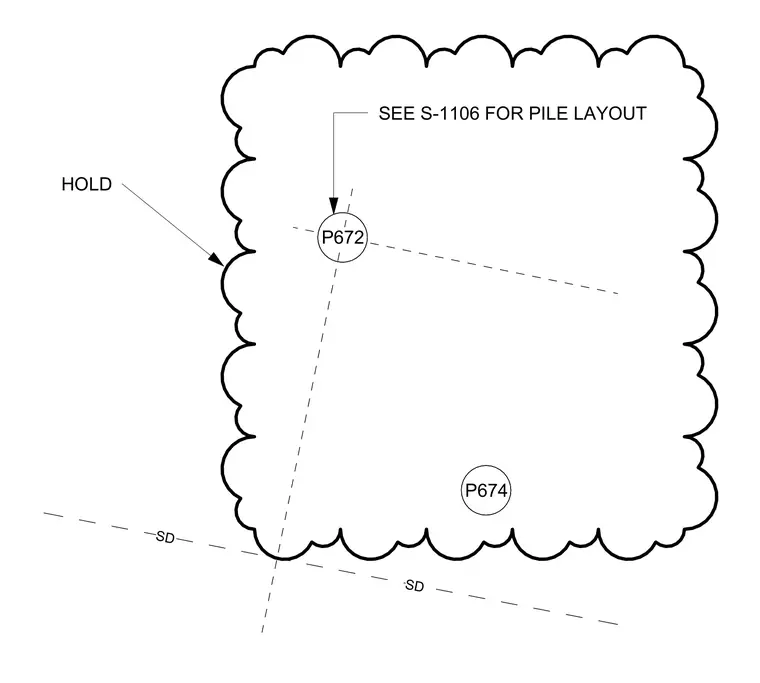

Foundation piles P672 and P674 are located within the cloud-bounded assembly referencing sheet S-1106 for the complete pile layout. A hold note marks a revision or pending status for the foundation element.
